Features
The TITAN-SVX-5.0 is a Bluetooth/Wi-Fi Servo Controller that is able to handle most of the commonly used motors in the industry: Stepper, Brushless Servo, Linear, Shaft, DC and Voice Coil Motors
• Supports USB, Bluetooth, and Wi-Fi communication
• Comes with many advanced motion control features: Auto Parameter Detection, Auto Tuning, Force/Torque control, and Multi-thread Motion Programming
• Uses the intuitive and easy-to-use TITAN Software that enables anyone to startup the servo motion system within minutes

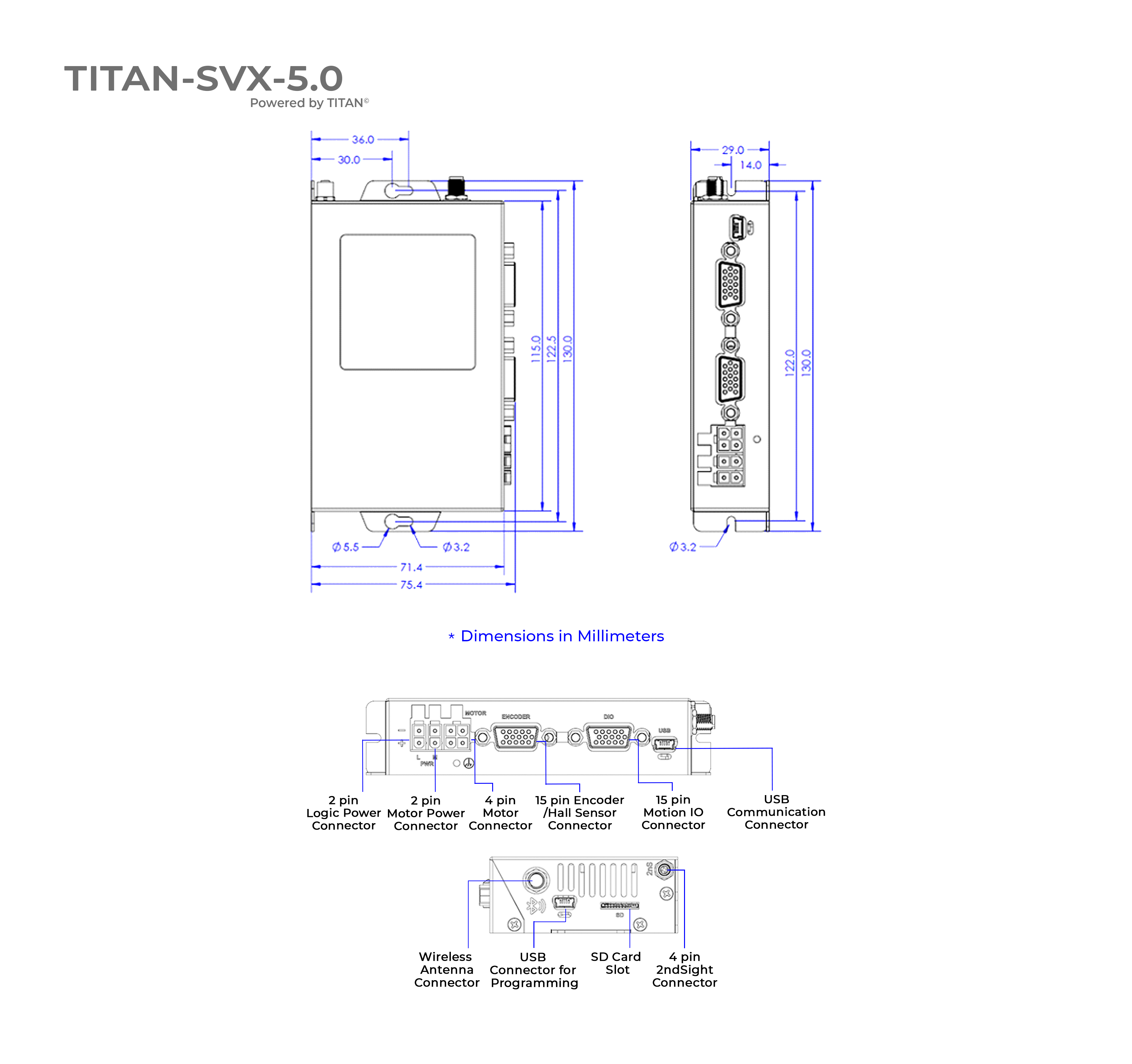

Connector
• USB Mini-B connector for communication
• USB Mini-B connector for programming the ESP32 controller
• Wireless antenna connector
• SD card slot
• 15 pin HD DSUB connector for encoder/hall sensor
• 15 pin HD DSUB connector for motion I/O
• 4 pin Mini-fit Jr for motor
• 2 pin Mini-fit Jr connector for Motor power
• 2 pin Mini-fit Jr connector for Logic power
Communication
• USB 2.0 using Virtual COM Port
• Bluetooth or Wi-Fi communication using the ESP32 controller module
• Protocols Supported: TITAN ASCII, TITAN ASCII with CRC, MODBUS ASCII, MODBUS RTU, TCP
Digital IO
• 8 Opto-isolated NPN 24V Compliant Digital Inputs (Including +Limit, -Limit and Home Inputs)
• 3 Opto-isolated NPN GND Sinking Digital Outputs
Power
• Motor Power: 24VDC to 48VDC
• Logic Power: 24VDC to 48VDC
2ndSight
• 2ndSight (patent-pending) is an innovative, comprehensive approach of applying Multi-dimensional Machine Learning methods, Analytical Physics, Statistics, and Regression techniques in quantifying and determining the overall health state of any motion system.
• 2ndSight is a real-time, data-driven, intelligent algorithm that is run on the Edge for increased efficiency and response. 2ndSight's compact and simplified data can easily be shared across networks and to the cloud, in contrast to burdensome, raw motion data.
